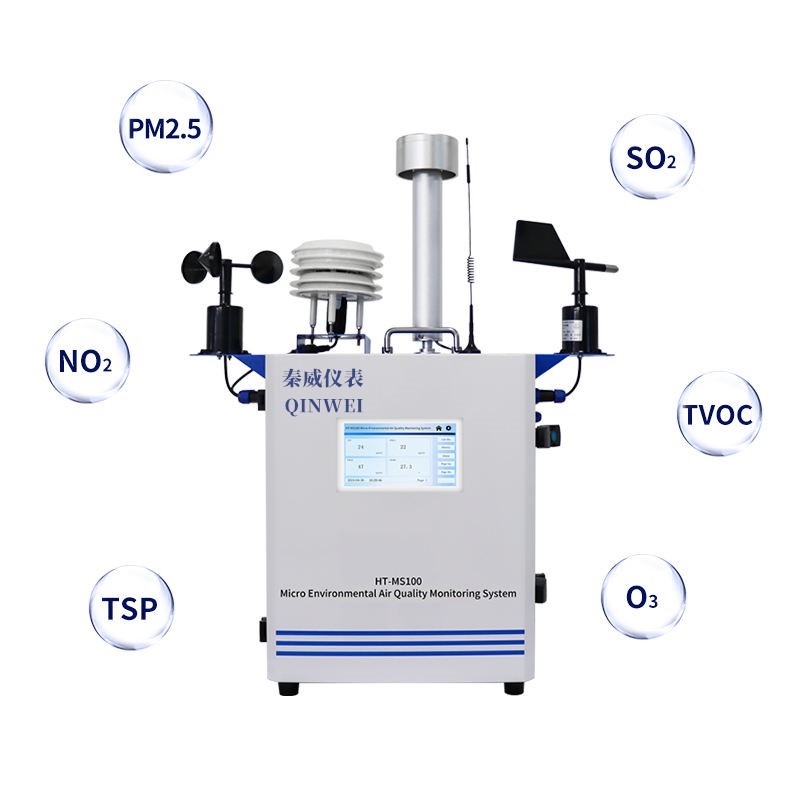

HT-MS100 Micro Environmental Air Quality Monitoring System
The HT-MS100 Micro Environmental Air Quality Monitoring System is a pump-suction type miniature air monitoring station featuring a modular integrated design. It can continuously and automatically collect atmospheric pollutants and meteorological parameters around the clock, suitable for grid-based air quality supervision, industrial sites, construction sites, and industrial parks, enabling real-time online monitoring of regional air quality.
Key Specifications
Type: Outdoor Air Quality Monitor
TVOC Range: 0–9.999 mg/m³
Humidity Range: 0–93% RH
Temperature Accuracy: ±0.5°C
Display Type: Touchscreen Display
Model: HT-MS100
Origin: China
Application Scenarios: Pollution Source Tracking, Air Environment Monitoring
HCHO Range: 0–10.0 ppm
Temperature Range: -20°C to 60°C
Reading Resolution: 0.01
IP Rating: IP55
Connector Type: USB
Technical Parameters
| Parameter |
Value |
| Model |
HT-MS100 |
| Power supply |
AC220V |
| Working temperature |
-20~50°C |
| Working humidity |
0-93%RH |
| Equipment power |
<100W |
| Equipment size(mm) |
738*810*200 |
Detailed Sensor Specifications
Five gases:
| Gas |
CO |
NO2 |
O3 |
S02 |
TVOC |
| Range |
0~20ppm |
|
0~lppm |
|
0~20ppm |
Accuracy: 0–10 ppm: ≤+2 ppm; 0–100 ppb: ≤±20 ppb; 0–300 ppb: ≤±50 ppb 10ppm-20ppm:≤±20%FS 100ppb-1ppm :≤+20%FS 300ppb-20ppm:≤±20%FS
Three types of dust:
| Dust Type |
PM2.5 |
PM10 |
TSP |
| Range |
0~2000g/m3 |
0~2000g/m3 |
0~50000g/m3 |
Accuracy: ≤±25 μg/m³ when ≤100 μg/m³; ≤±25% when >100 μg/m³
Product Features
- Miniature Environmental Air Quality Monitoring System: Monitors multiple pollutants including PM2.5, PM10, SO2, NO2, CO2, VOCs, and CO.
- Real-time Data Display: Instantly calculates air quality index and provides visual feedback.
- Alert Function: Notifies users to take timely action when air quality exceeds safe thresholds.
- Networked Continuous Monitoring: Ensures uninterrupted data collection and analysis for comprehensive insights.
Typical Application Scenarios
- Unorganized emission monitoring in industrial parks
- Dust monitoring at construction sites
- Urban grid-based air quality monitoring
- Chemical industrial zones
- Road traffic monitoring
- Environmental monitoring in parks, schools, and residential areas
- VOC monitoring in concentrated dining districts
- Mining area environmental monitoring, etc.
